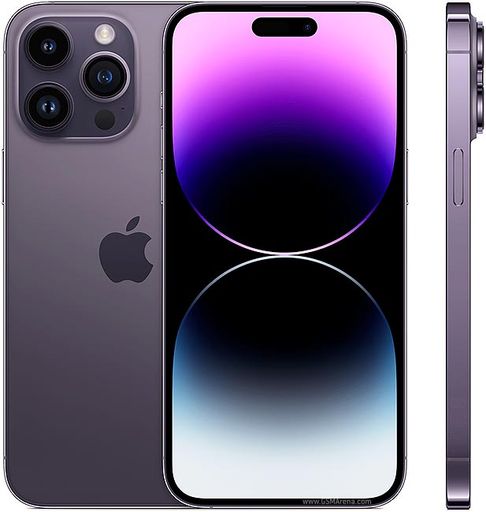

Apple iPhone 14 Pro Max '05738

NETWORK
Technology GSM / CDMA / HSPA / EVDO / LTE / 5G
2G bands GSM 850 / 900 / 1800 / 1900
CDMA 800 / 1900
3G bands HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
CDMA2000 1xEV-DO
4G bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2894, A2896
1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66, 71 - A2651, A2893
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2895
5G bands 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2894, A2896
1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79, 258, 260, 261 SA/NSA/Sub6/mmWave - A2651
1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79 SA/NSA/Sub6 - A2893
1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2895
Speed HSPA, LTE, 5G, EV-DO Rev.A 3.1 Mbps

LAUNCH
Announced 2022, September 07
Status Available. Released 2022, September 16
BODY
Dimensions 160.7 x 77.6 x 7.9 mm (6.33 x 3.06 x 0.31 in)
Weight 240 g (8.47 oz)
Build Glass front, glass back, stainless steel frame
SIM · Nano-SIM + eSIM + eSIM (max 2 at a time; International)
· eSIM + eSIM (8 or more, max 2 at a time; USA)
· Nano-SIM + Nano-SIM (China)
IP68 dust tight and water resistant (immersible up to 6m for 30 min)
Apple Pay (Visa, MasterCard, AMEX certified)

DISPLAY
Type LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM)
Size 6.7 inches, 110.2 cm2 (~88.3% screen-to-body ratio)
Resolution 1290 x 2796 pixels, 19.5:9 ratio (~460 ppi density)
Protection Ceramic Shield glass

PLATFORM
OS iOS 16, upgradable to iOS 26.5
Chipset Apple A16 Bionic (4 nm)
CPU Hexa-core (2x3.46 GHz Everest + 4x2.02 GHz Sawtooth)
GPU Apple GPU (5-core graphics)

MEMORY
Card slot No
Internal 128GB 6GB RAM, 256GB 6GB RAM, 512GB 6GB RAM, 1TB 6GB RAM
NVMe

MAIN CAMERA
Triple 48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS
12 MP, f/2.8, 77mm (telephoto), 1/3.5", 1.0µm, PDAF, OIS, 3x optical zoom
12 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 1.4µm, dual pixel PDAF
TOF 3D LiDAR scanner (depth)
Features Dual-LED dual-tone flash, HDR (photo/panorama)
Video 4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, stereo sound rec.
SELFIE CAMERA
Single 12 MP, f/1.9, 23mm (wide), 1/3.6", 1.0µm, PDAF, OIS
SL 3D, (depth/biometrics sensor)
Features HDR
Video 4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS

SOUND
Loudspeaker Yes, with stereo speakers
3.5mm jack No

COMMS
WLAN Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, hotspot
Bluetooth 5.3, A2DP, LE
Positioning GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS
NFC Yes
Radio No
USB Lightning, USB 2.0

FEATURES
Sensors Face ID, accelerometer, gyro, proximity, compass, barometer
Messaging iMessage, SMS(threaded view), MMS, Email, Push Email
Browser HTML5 (Safari)
Ultra Wideband (UWB) support
Emergency SOS via satellite (SMS sending/receiving)

BATTERY
Type Li-Ion 4323 mAh (16.68 Wh)
Charging Wired, PD2.0, 50% in 30 min
15W wireless (MagSafe)
15W wireless (Qi2) - requires iOS 17.2 update
MISC
Colors Space Black, Silver, Gold, Deep Purple
Models A2894, A2651, A2893, A2895, A2896, iphone15,3
SAR 1.15 W/kg (head) 1.07 W/kg (body)
SAR EU 0.99 W/kg (head) 0.98 W/kg (body)
Price $ 435.89 / € 484.00 / £ 449.00

TESTS
Performance AnTuTu: 955884 (v9)
GeekBench: 5423 (v5.1)
GFXBench: 54fps (ES 3.1 onscreen)
Available in Graphite, Gold, Silver, Sierra Blue, Alpine Green
